- The Cub Cadet XT1 ST54 FAB is powered by a 24 hp KOHLER 7000 Series twin cylinder engine.
- 54-inch fabricated, 11-gauge, triple-blade deck with AeroForce(TM) deck design that optimizes airflow and maximizes suction to reduce clumping during discharge and improves bagging performance while delivering the pristine Cub Cadet Signature Cut™.
- Optimized steering system for responsive handling gives a 16-inch turn radius a zero-turn feel.
Engine- Engine BrandKohler®
- Engine Model7000 Series
- Engine Model NumberKT735
- Engine Displacement725cc
- Engine Output24HP
- Starter TypeElectric
- Fuel Tank Capacity3.0 gal. US (11.36 L)
- CylindersTwin
- Engine StartIgnition Key
- Engine Oil Capacity2.0 qt. US (1.89 L)
- LubricationFully pressurized
- Charging System12 amp regulated
- Fuel GaugeNo
- GovernorMechanical
- ChokeChoke-a-matic
- Air FilterDual element
- Oil FilterYes
- Fuel DeliveryCarburetor
Battery- Battery230 CCA
- Battery TypeAGM (Absorbent Glass Mat)
- Battery Voltage12V
Drive System- TransmissionTuff Torq® K46
- Forward Speed5.5 MPH / 8.6 km/h
- Reverse Speed3 MPH / 4.8 km/h
- Rear Axle3/4"
- Drive SystemHydrostatic
- Transmission ControlFoot Pedal
- Transmission HousingAluminum
- Rear Differential LockNo
Cutting Deck- Deck Cutting Width54 in
- Deck WashYes
- Deck Material11-gauge steel
- Deck Engagement (PTO)Electric
- Deck ConstructionFabricated
- Blade(s)Three
- Deck LiftManual
- Cutting Height Range1" - 4"
- Anti-ScalpingFour gauge wheels plus roller
- Deck Positions12
Warranty- Warranty3-year unlimited hours
- Frame Warranty5-year unlimited hours
- Front Axle Warranty5-year unlimited hours
- Deck Shell WarrantyLifetime limited
- Commercial WarrantyNo
Chassis- FrameRobotically welded
- Turning Radius16"
- BumperSteel tube
- Rear Tow HitchYes
- Corrosion ProtectionYes
- Front Pivot BarCast iron
Controls- Cruise ControlYes
- BrakesDisc
Comfort- Seat Type15" high-back
- ArmrestsNo
- Seat AdjustmentLever
- Floor MatsRubber
Wheels- Bearing TypePoly Bushing
- Rear Tires22"x 9.5"-12"
- Front Tires16"x 6.5"-8"
- Tire TreadTurf Saver
Additional Specifications- Mulch KitAvailable Separately
- Headlight(s)Dual-LED
- Cup HolderYes
- Operator Presence SystemYes
- Model Number13AQA2TMA10
Specifications- SeriesXT1® Enduro Series™
Disclaimer- Specifications DisclaimerSpecifications subject to change without notice and without incurring obligation. Products depicted on website and other advertisements are for demonstration purposes only. Actual products offered for sale may vary in design, required attachments, safety features and non-functional appearance from. See other general disclaimers at the bottom of our website.
Financing is available on-line and within the dealership. Contact one of our sales team members for more information. 601-445-0795
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Features

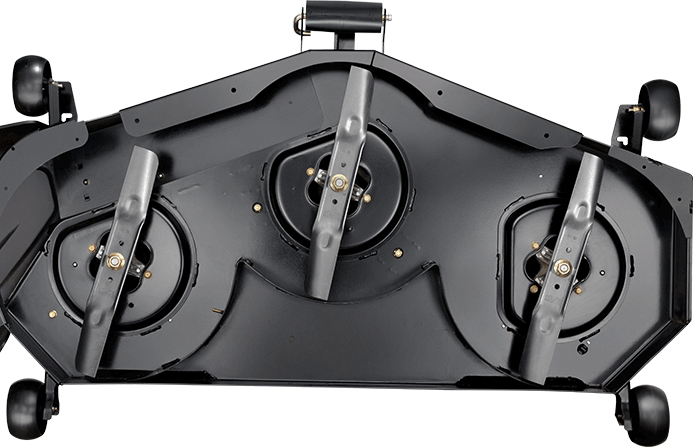

ADVANCED CUTTING PERFORMANCE
A new muscular cutting system features stamped and fabricated cutting deck options built with heavy duty materials and an advanced belt design, ensuring durability and reliability while delivering the pristine Cub Cadet Signature Cut™ and an unprecedented level of bagging performance.

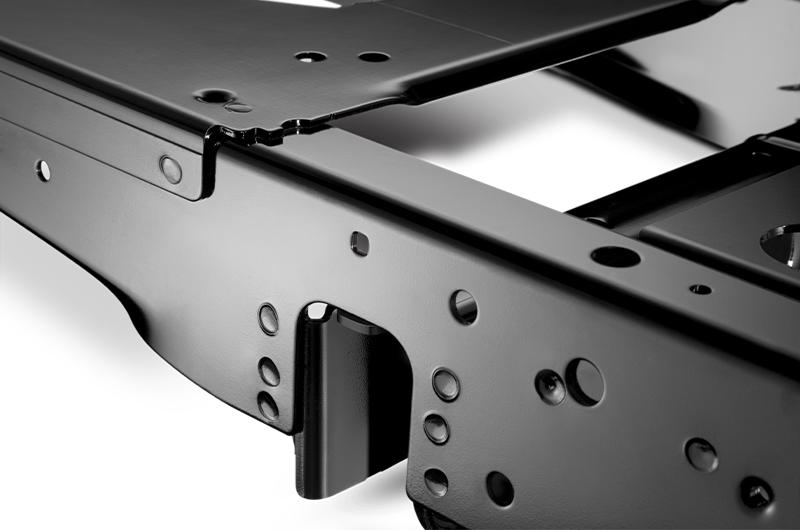

EXCEPTIONAL CORROSION PROTECTION
Only Cub Cadet offers the protection of the Corrosion Defense System with E-Coat. A multi-step process electronically applies automotive-grade corrosion resistance with meticulous care to protect against wear and tear.
INCRINCREDIBLY RESPONSIVE HANDLING
With incredible control and an almost instantaneous response rate, the XT 1’s new and optimized electronic power steering system provides exact control, maneuverability and command at every turn.
|
|
|
|
|
|
|
